Canvas Integration Guide

Guide for Admins

Key Points:

Approximate setup time is 10 minutes
Once Admin integrates with Rumi with Canvas, all Instructors will have access to Rumi.
To use Rumi with Canvas, classes and assignments must be created in Canvas, not Rumi.
This is a single-sign on integration, your should not register new accounts on Rumi.

Step 1. Open Canvas → Click on Admin → CANVAS

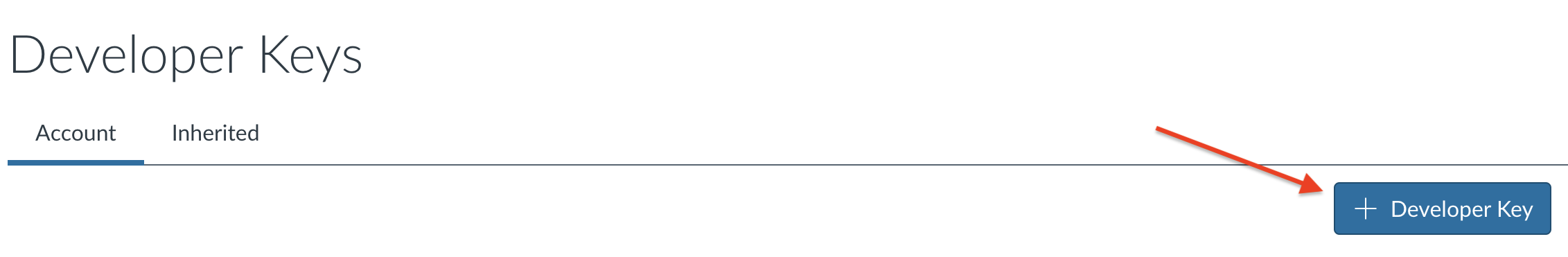

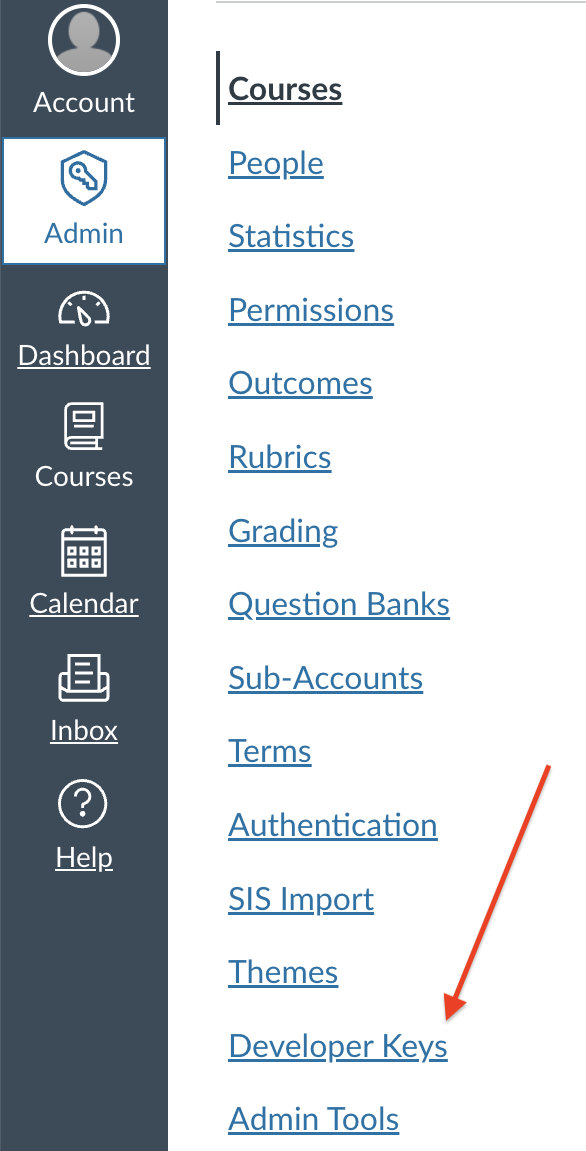

Step 2. Scroll down and click on “Developer Keys”, then click on “+ Developer Key”

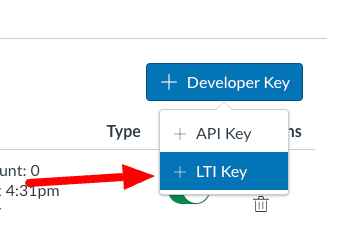

Step 3. Click on “+ LTI Key”

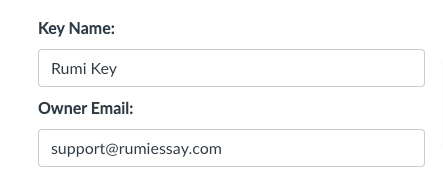

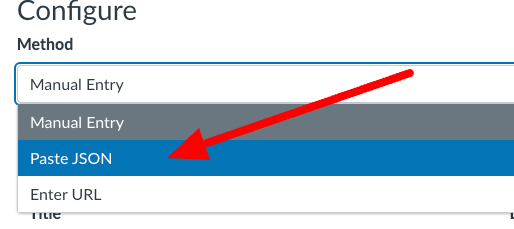

Step 4. Click on “Paste JSON” then paste the JSON file from this link, and name the key "Rumi Key" and add the following email address "support@rumiessay.com"

Step 5. After creation of the key, switch the "State" to "On". Then copy the "Client Id", this is needed for Step 8 and Step 10.

‍

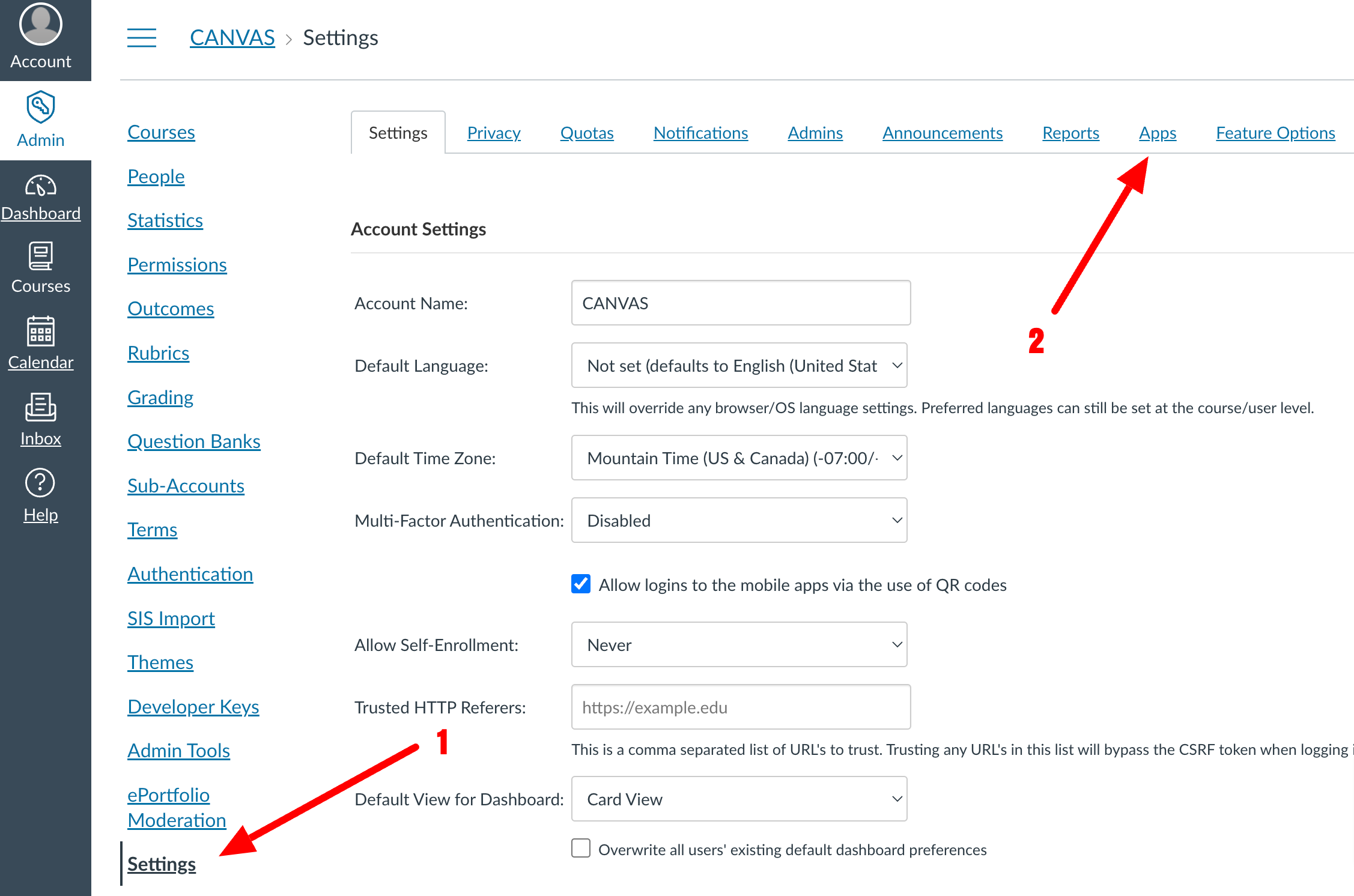

Step 6. Click on Settings (left menu) → Then click on Apps (top menu)

‍

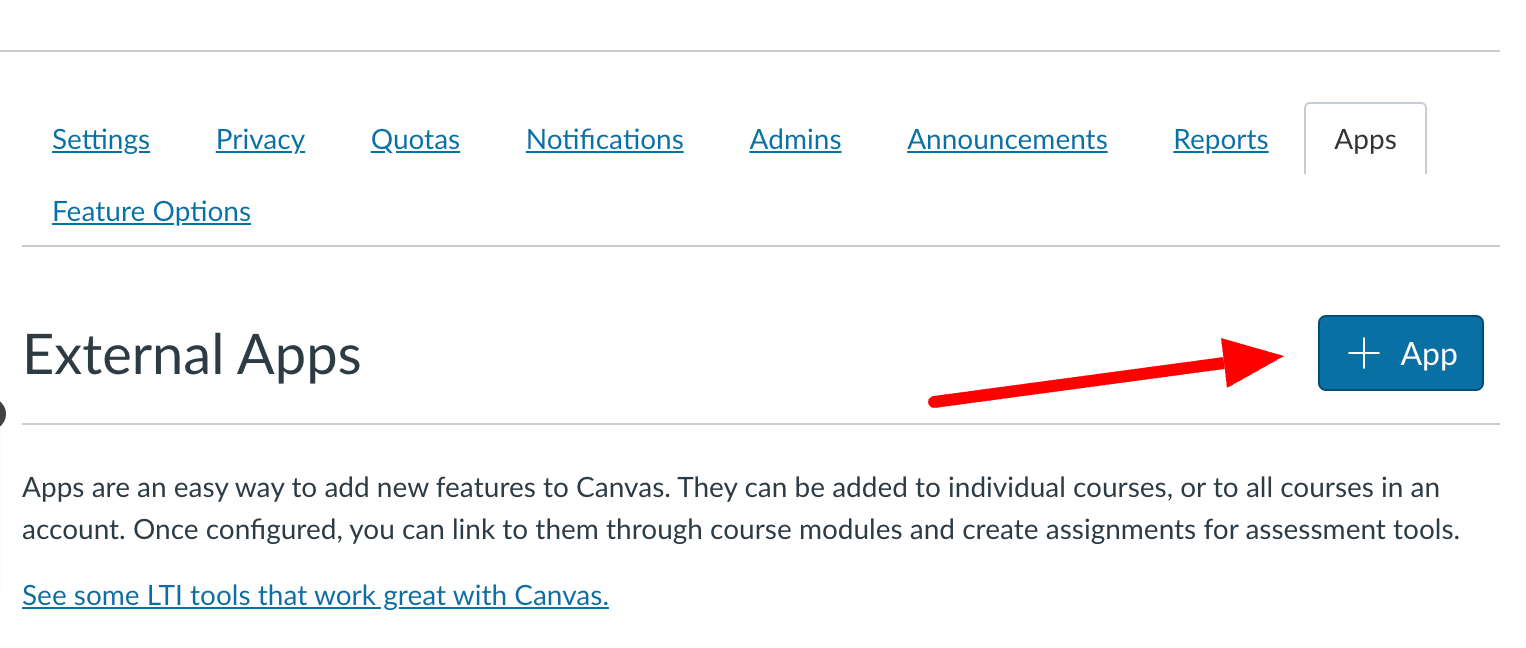

Step 7. Click on “+ App” within Apps Tab

‍

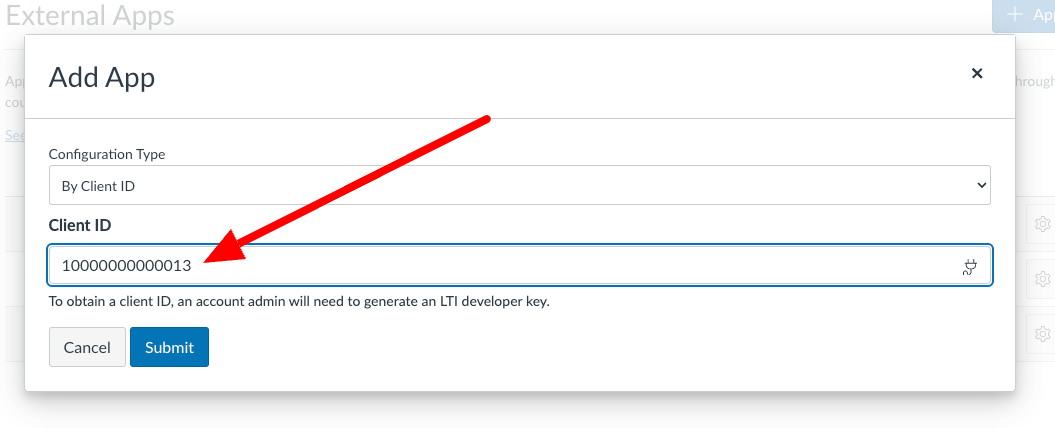

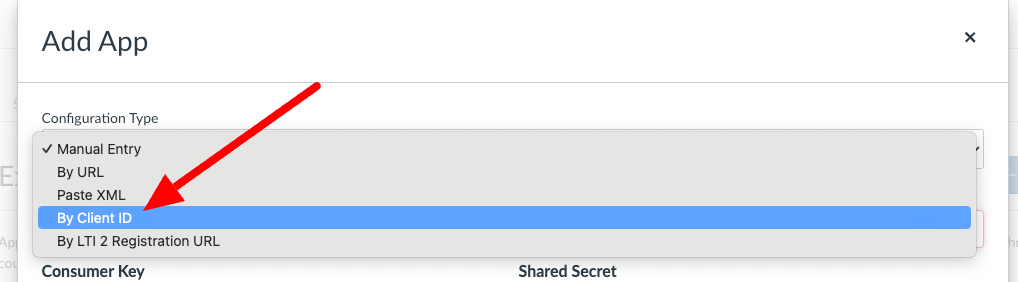

Step 8. Choose by Client Id and paste the "Client ID" copied in Step 5.

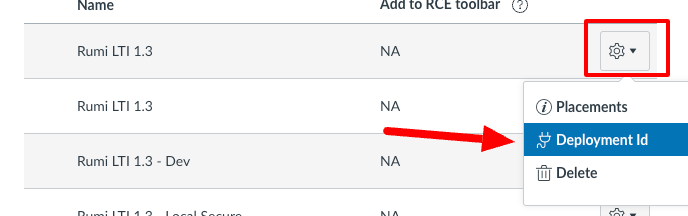

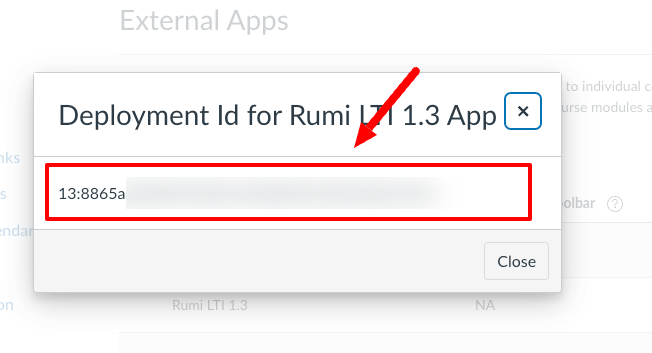

Step 9. Then Click on the Settings button and click on "Deployment Id" and copy the Deployment Id, this is needed in Step 10

‍

Step 10. Please send an email to support@rumiessay.com with the following information:

Client Id in Step 5
Deployment Id in Step 9
Canvas URL of your institution
Canvas Launch Environment e.g. prod, beta, test, etc.

‍

Step 11. Now click on “Developer Keys” again, then click on “+ Developer Key”

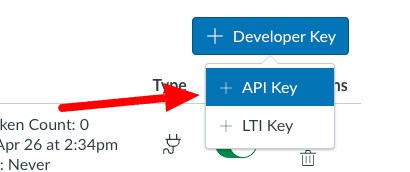

Step 12. This time, click on “+ API Key”

‍

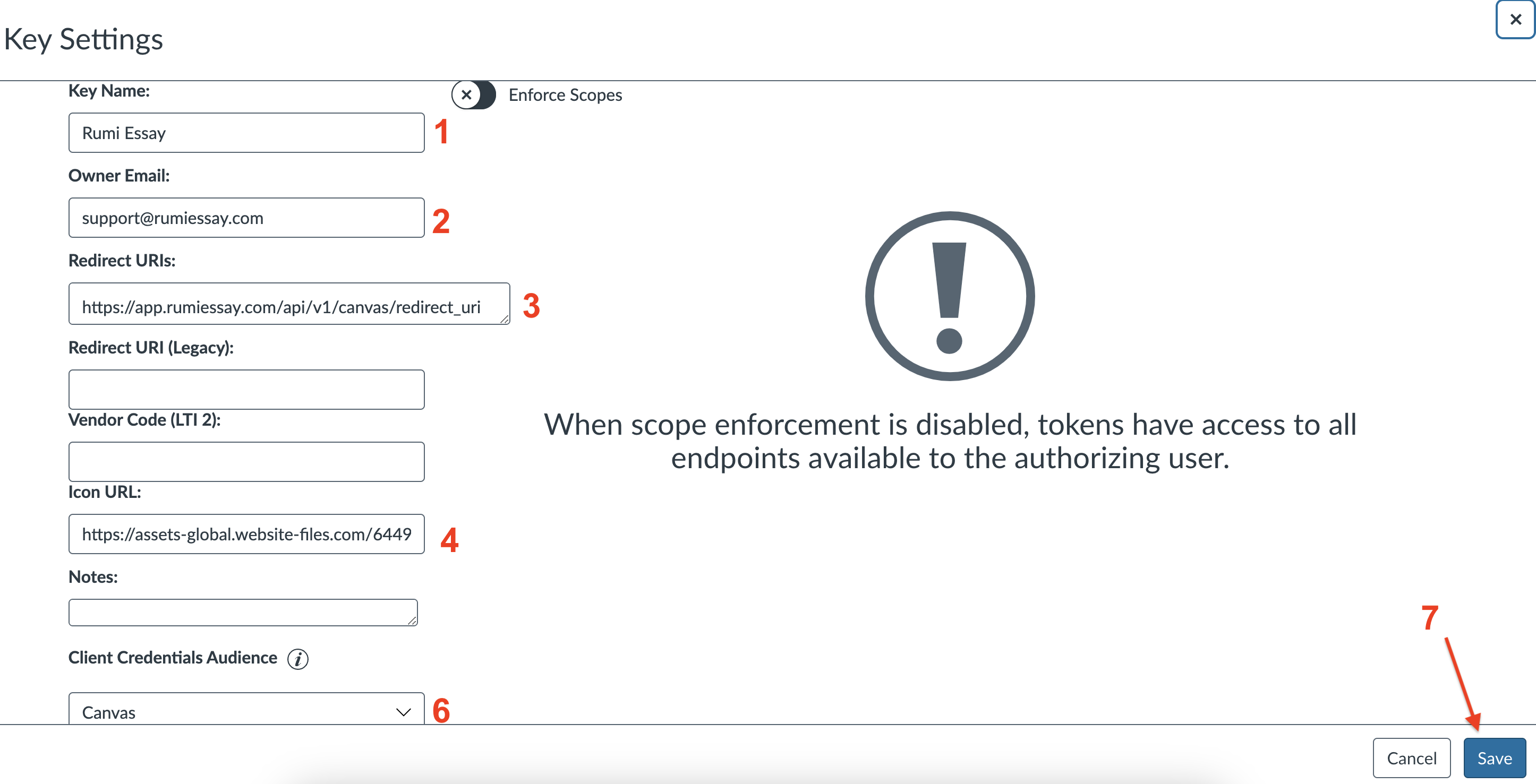

Step 13. Fill out the form using the following info
‍

Enter a Key Name, for example “Rumi LTI"
In the “Owner Email” section, enter “support@rumiessay.com”
In the “Redirect URIs” section paste the following Redirect URI: https://app.rumiessay.com/api/v1/canvas/redirect_uri‍
In the “Icon URL” section paste the following:
https://rumi-public-files.s3.us-west-2.amazonaws.com/assets/Rumi+Logo.png
‍Leave “Redirect URI (Legacy)”, “Vendor Code (LTI 2)”, “Notes” sections empty
In the “Client Credentials Audience” section, choose “Canvas”
Click “Save”

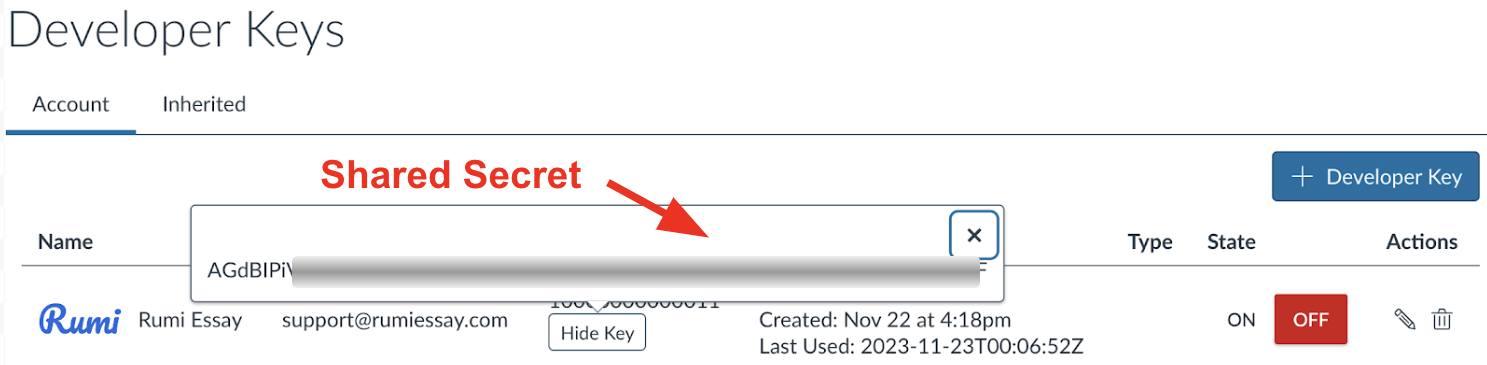

Step 14. Click on “Show Key” and store the Shared Secret, it will be used in Step 16

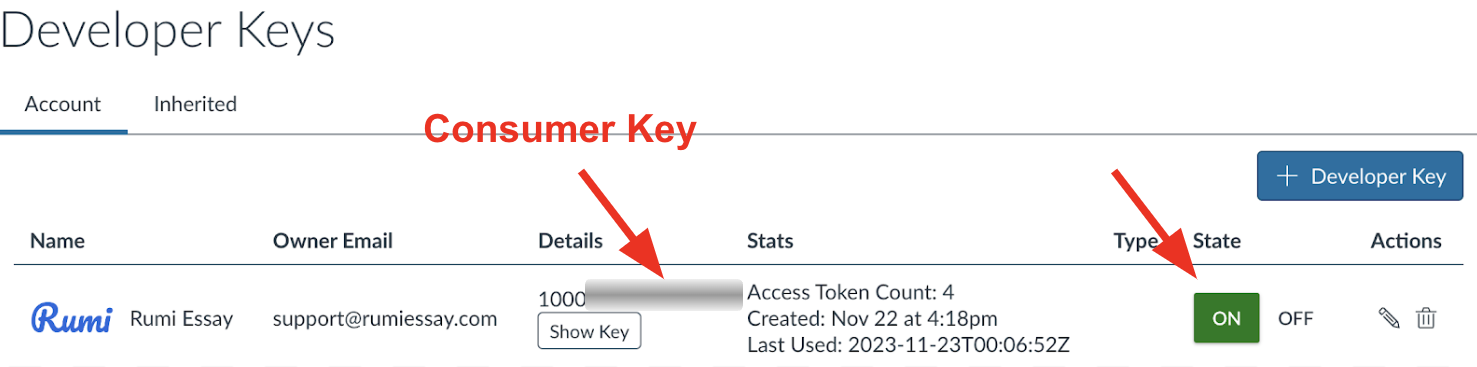

Step 15. Enable the key by clicking on “ON”. Store the Consumer Key, it will be used in Step 16

Step 16. Please send an email to support@rumiessay.com with the following information:

Generated Shared Secret in Step 14
Consumer Key in Step 15

‍

Now follow the Guide for Instructor to add Rumi to an assignment

‍

Guide for Instructors

Key Points:

Approximate setup time 3 minutes
Your Admin must have already integrated Rumi into Canvas
To integrate with Canvas, classes and assignments must be created in Canvas, not Rumi.
This is a single-sign on integration, you should not register new accounts on Rumi.

Step 1. Open Canvas → Click on Courses

‍

Step 2. Go to the “Assignments” section for a course and create a new assignment, or select an existing assignment if you already have one.
‍

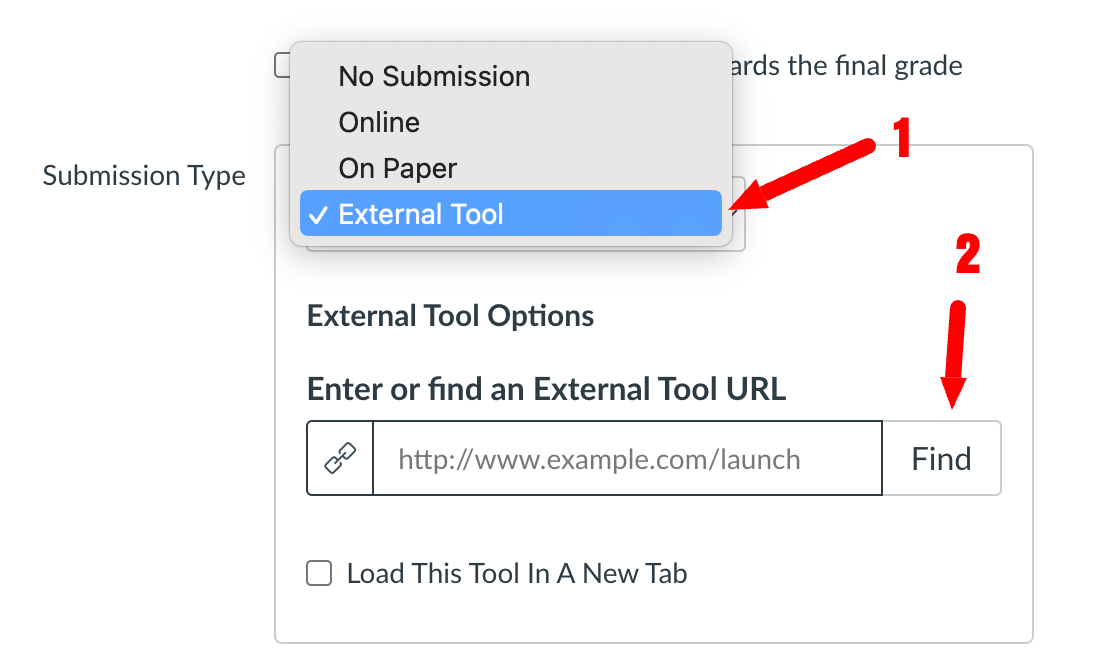

Step 3. In the “Submission Type” select “External Tool” and click the “Find” button next to the text field.

Step 4. In the dialog choose Rumi, then click on Select. DO NOT check the "Load in new tab".

‍

Step 5. Complete the rest of the Assignment Creation form and press “Save” or if the assignment hasn’t been published yet press “Save & Publish”
‍

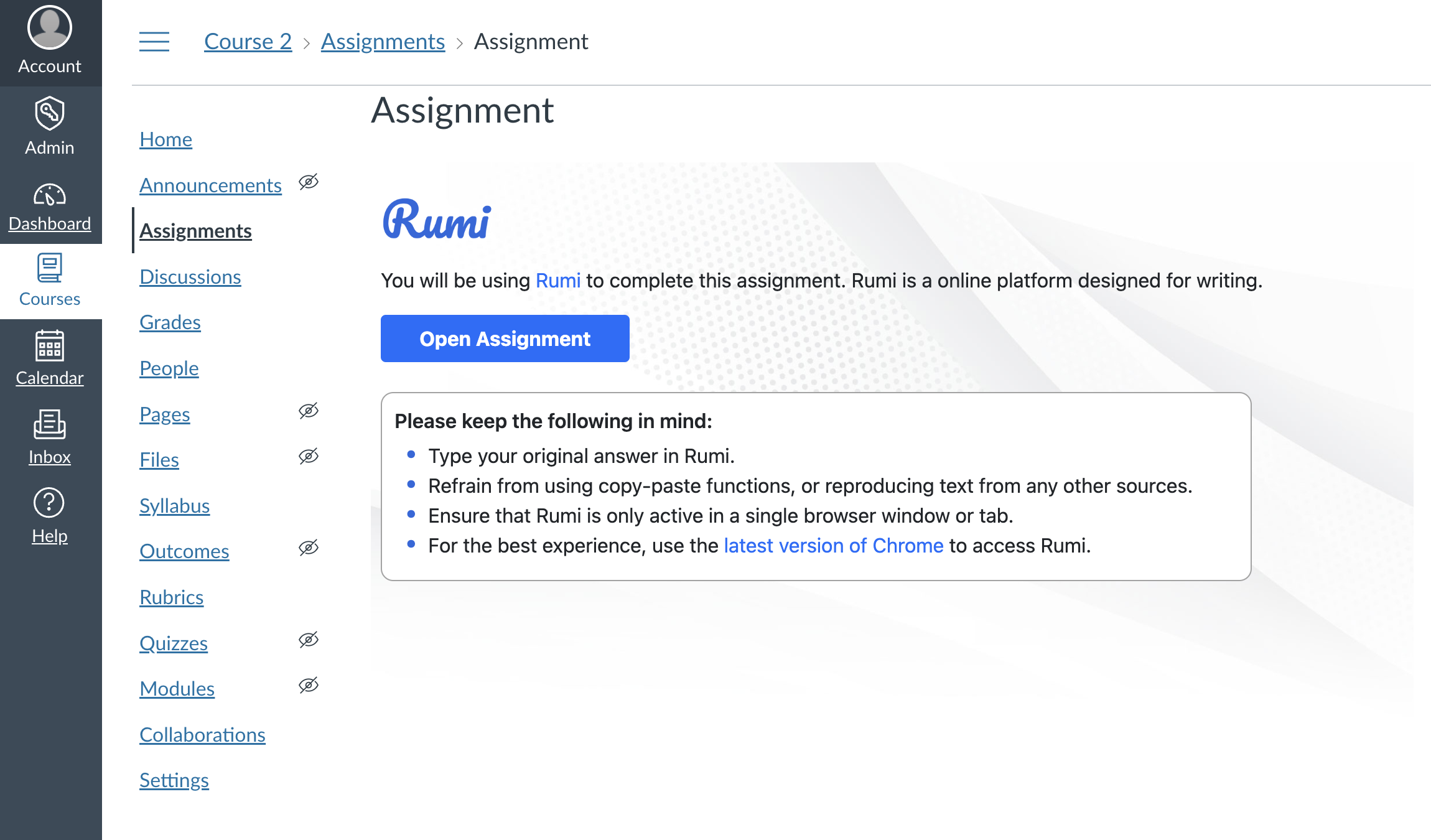

Step 6. Now students will see a section that redirects them to Rumi

‍

Step 7. IMPORTANT: Tell students to do all their writing in Rumi’s Editor, THEY SHOULD NOT use another editor (i.e. Google Docs or Word) to write their essay then paste in Rumi
‍
